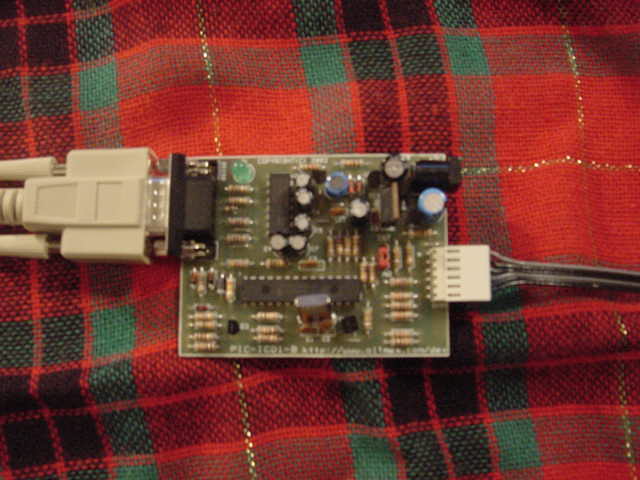

Illustrating Main ICD Board, Serial Cable, and cable to the target. Note that the power jack on the ICD is not used as normally power is provided by the target system.

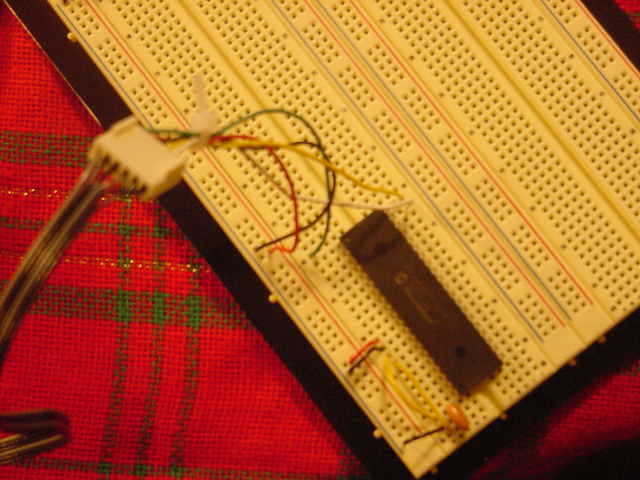

Illustrating connection of the ICD cable to the target.

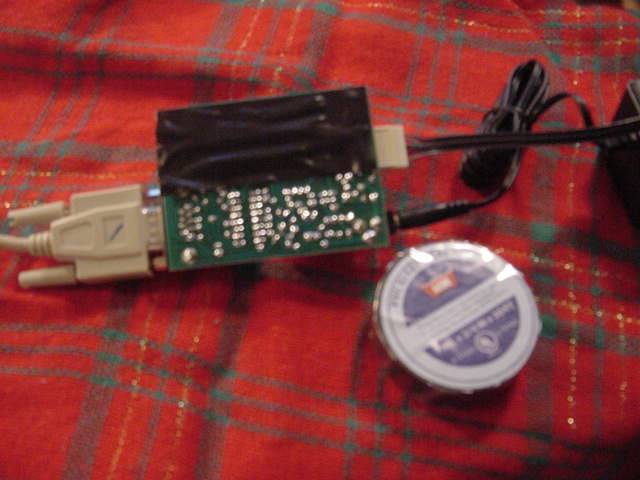

It is strongly recommended that the bottom of the printed circuit board be insulated using electrical tape which is provided.
