This program illustrates many features of the LCD #117 command set. The language is Parallax PBASIC for the Nasic Stamp 2. However the user should be able to adapt this to any processor.

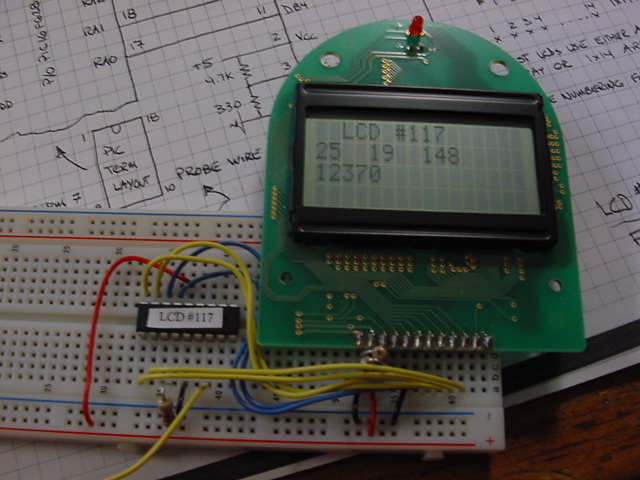

This routine was specifically written for an interface with the Emerging Technology ED10020TRU 16 X 4 LCD.

' {$STAMP BS2}
' {$PBASIC 2.5}
' LCD117_1.BS2  (Parallax Basic Stamp 2)
'

' Configured for 9600 baud, 8 bits, no parity.
'
' Basic Stamp 2                                LCD #117
'
' P0 (term 5) -----------------------------------> RX (term 7)
'
'
' Sets geometry of LCD as 4X16 and clears the LCD and writes a byte in decimal
' and in hex,  an integer and a word to the LCD display.
'
' Defines, special characters 0 - 5 as no vertical lines, 1 vertical line,
' 2 vertical lines etc.  Displays an increasing bar and then a decreasing bar
' on line 3.
'
' Enters an infinite loop winking output 3.
'
' copyright, Peter H. Anderson, Baltimore, MD, Dec, '07

   BaudMode CON 84   ' 9600 baud, non-inverted

   N VAR Byte
   I VAR Byte
   WordVar VAR Word
   ByteVar VAR Byte

   NN VAR Byte
   Remainder VAR Byte
   Num_5 VAR Byte


   DIR0 = 1  ' make P0 an output
   HIGH 0  ' this is the steady state for non-inverted
   PAUSE 1000  ' allow to stabilize

   SEROUT 0, Baudmode, ["?G416"] ' configure LCD geometry
   PAUSE 200  ' pause to allow LCD EEPROM to program


   SEROUT 0, Baudmode, ["?f"]  ' clear the LCD
   PAUSE 200
   SEROUT 0, Baudmode, ["  LCD #117?n"]  'note new line

   SEROUT 0, Baudmode, [" phanderson.com?n"]

   SEROUT 0, Baudmode, ["?0?1?2?3?4?5?6?7?n"]  ' display special characters

   PAUSE 5000    ' pause five secs to admire

   SEROUT 0, Baudmode, ["?y1?x00"] ' cursor at line 1, col 0

   SEROUT 0, Baudmode, ["?l?j?l?j?l?y1"]' clear lines 1, 2 and 3 and start at line 1
             ' note use of down cursor

   WordVar = 12345
   ByteVar = 123


   FOR N = 0 TO 25
      SEROUT 0, Baudmode, ["?x00?y1"]      ' locate cursor to beginning of line 1
      SEROUT 0, Baudmode, [DEC N, "?t", HEX N, "?t"]  ' display N in Dec and Hex
      SEROUT 0, Baudmode, [DEC ByteVar, "?n"]
      SEROUT 0, Baudmode, [DEC WordVar, "?n"]  ' display a word
      ByteVar = ByteVar + 1
      WordVar = WordVar + 1
      FOR I = 1 TO 4
         SEROUT 0, Baudmode, ["?g"] ' beep four times
         PAUSE 50
      NEXT
      PAUSE 500
   NEXT

   SEROUT 0, Baudmode, ["?D00000000000000000"]    ' define special characters
   PAUSE 200   ' delay to allow write to EEPROM

   SEROUT 0, Baudmode, ["?D11010101010101010"]
   PAUSE 200

   SEROUT 0, Baudmode, ["?D21818181818181818"]
   PAUSE 200

   SEROUT 0, Baudmode, ["?D31c1c1c1c1c1c1c1c"]
   PAUSE 200

   SEROUT 0, Baudmode, ["?D41e1e1e1e1e1e1e1e"]
   PAUSE 200

   SEROUT 0, Baudmode, ["?D51f1f1f1f1f1f1f1f"]
   PAUSE 200

   SEROUT 0, Baudmode, ["?c0"]    ' no cursor
   PAUSE 200

   SEROUT 0, Baudmode, ["?y3?x00?l"]  ' cursor to beginning of line 3 and clear line

   FOR N = 0 TO 20      ' increasing bar
      SEROUT 0, Baudmode, ["?y3?x00"]
      NN = 4 * N
      Num_5 = NN / 5
      Remainder = NN // 5
      FOR I = 1 TO Num_5
         SEROUT 0, Baudmode, 10,["?5"]
      NEXT
      SEROUT 0, Baudmode, 10, ["?", DEC1 Remainder]
   NEXT

   PAUSE 1000
   FOR N = 0 TO 20      ' decreasing bar
      SEROUT 0, Baudmode, ["?y3?x00?l"]
      NN = 4 * N
      NN = 80 - NN
      Num_5 = NN / 5
      Remainder = NN // 5
      IF (Num_5 >= 1) THEN
         FOR I = 1 TO Num_5
            SEROUT 0, Baudmode, 10, ["?5"]
         NEXT
      ENDIF
      SEROUT 0, Baudmode, 10, ["?", DEC1 Remainder]
   NEXT

   DO          ' continually bring output 3 high and low
      SEROUT 0, Baudmode, ["?H3"]
      PAUSE 500
      SEROUT 0, Baudmode, ["?L3"]
      PAUSE 500
   LOOP
