Debug your Arduino application using a solderless breadboard and then consider this prototyping board for the implementation.

Fully assembled with an Arduino programmed ATMega168-20PU installed. Shipped with flashing LED on Digital Pin 19.

Features:

• ICSP 5x2 pin connector for in-circuit programming
• RS232 Tx, Rx interface with MAX232 IC on socket
• 16 MHz crystal on socket (user can replace with any value)
• Reset IC ZM33064
• Reset button
• General purpose push button of PD1 (Digital 0)
• Status LED connected to PC5 (Analog 5 or Digital 19) via removable jumper
• DIL28 microcontroller socket
• Power plug-in jack, 2.1 mm, center positive. Use 9 - 12 VDC.
• Selectable +3.3V / +5V power supply voltage regulator
• Extension solder for each uC pin
• Four mounting holes 3.3 mm (0.13")
• GND and Vcc bus
• FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions 100x80 mm (3.9x3.15")

Fully assembled with an Arduino programmed ATMega168-20PU installed. Shipped with flashing LED on Digital Pin 19.

Use with a conventional DB9 type Serial Port or with a USB to Serial Adaptor.

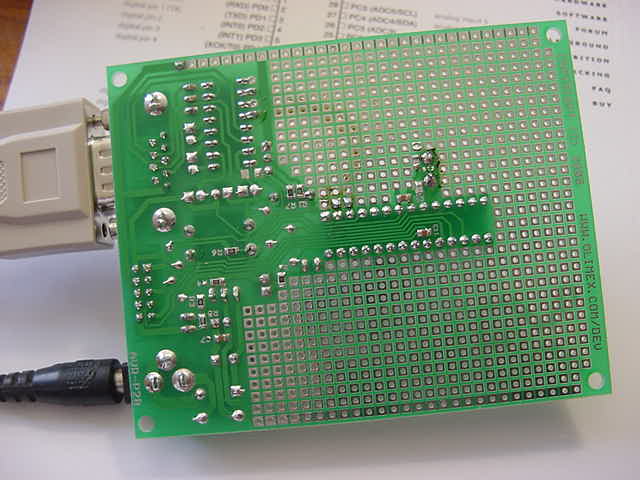

Back of board

Schematic.
